Workshop Manual and Wiring Nissan X-Trail T32 (2014-2017)

Nissan X-Trail T32 (2014-2017) | Global Factory Service & Electrical Manual

Professional-Grade Technical Data for the T32 Platform

Maintain the precision of your Nissan X-Trail with the ultimate factory service package. Covering the 2014-2017 global T32 series (including Wagon and SUV body styles), this high-resolution digital manual is the definitive resource for both European and American market specifications. Whether you are a professional technician or a DIY enthusiast, this guide provides the exact data needed to master the X-Trail's advanced architecture.

📋 Comprehensive Engine & CVT Coverage

The T32 is a sophisticated machine; ensure you have the correct specifications for its specific powertrain lineup:

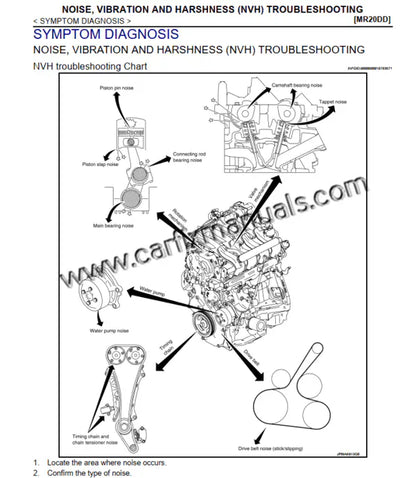

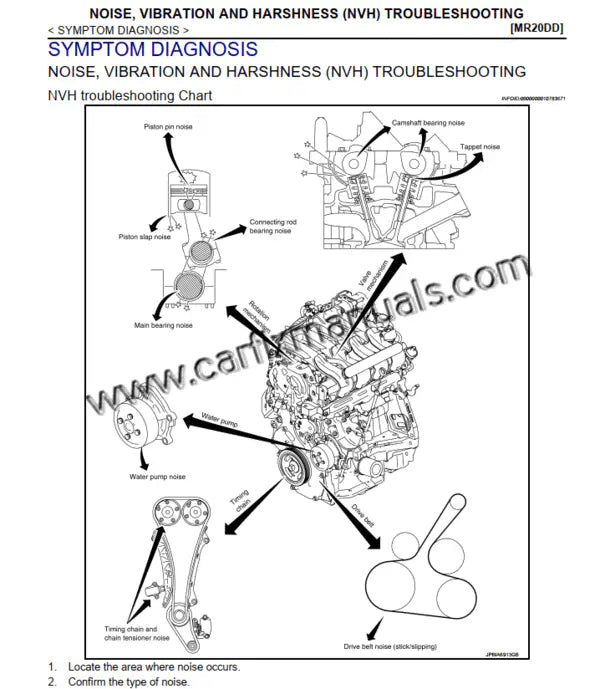

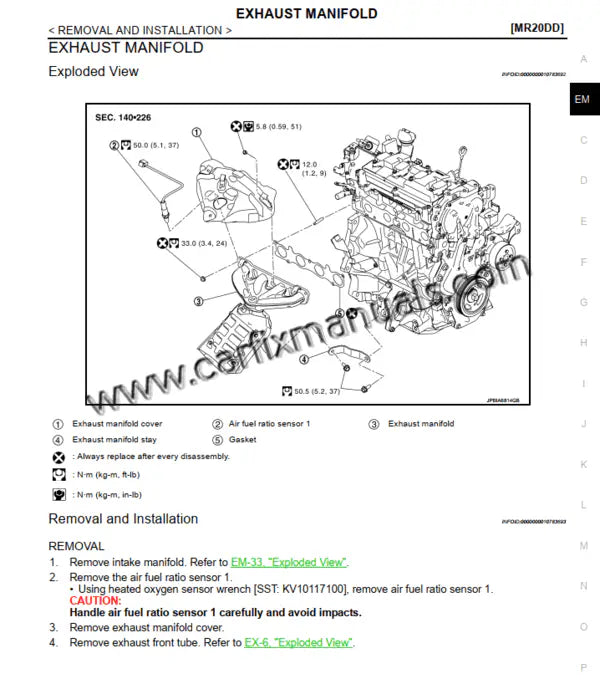

• Engine Range: Full mechanical and management data for the QR25DE (2.5L), MR20DD (2.0L), and the R9M (1.6L) engines.
• CVT Transmission Specialists: Dedicated service routines for the RE0F10D and RE0F10G Continuously Variable Transmissions, including fluid requirements and diagnostic logic.

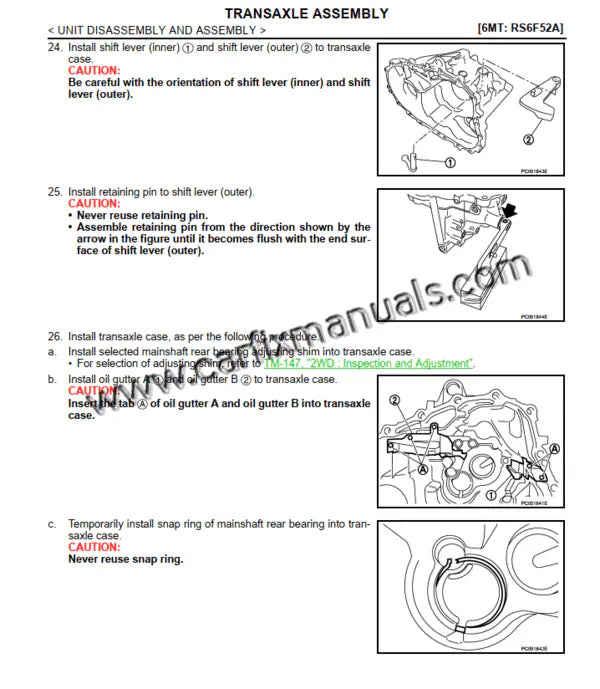

• Manual Gearboxes: Complete teardown and repair data for the 6-speed RS6F94R and RS6F52A transmissions.

⚡ Advanced Electronics & Wiring

Modern Nissans rely heavily on complex electronic networks. This manual includes:

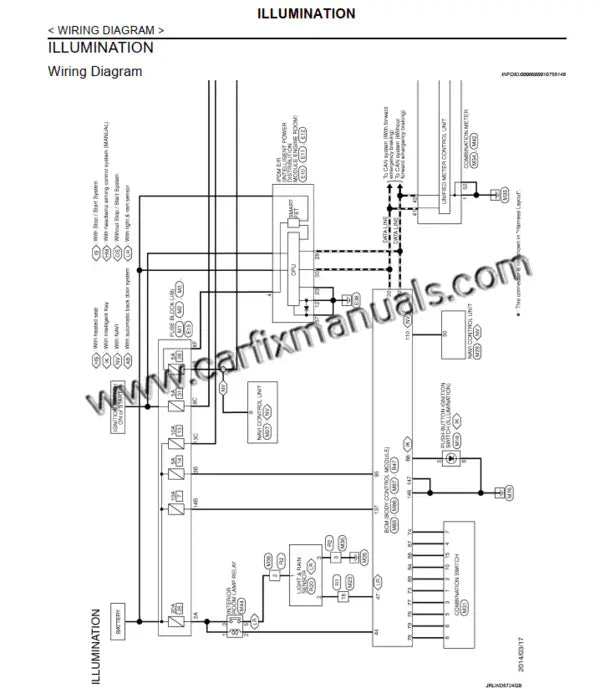

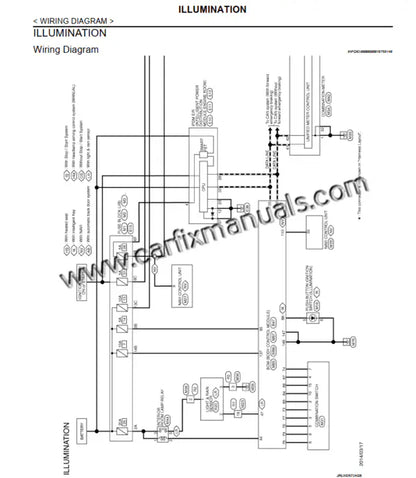

• Master Wiring Schematics: Detailed, high-resolution maps for the entire vehicle—essential for troubleshooting infotainment, ADAS, and safety systems.
• Fault Code Guidance: Step-by-step diagnostic trees to interpret and resolve engine management and transmission control codes.
• Chassis Systems: Full coverage of electronic braking, steering, and climate control circuits.

📲 Designed for the Modern Workshop

• Instant Portability: High-resolution PDF format that works flawlessly on your smartphone, tablet, or laptop.
• Searchable Content: Find torque specs, fluid capacities, or wiring pins in seconds with integrated search functionality.
• Print-on-Demand: Print specific schematics or torque tables to keep your digital device clean while you work.

Why This Manual Stands Out:

1. Global Specs: Unified coverage for both American and European market variations.
2. Factory Accuracy: The same technical documentation used in Nissan service bays.
3. Complete Systems: From the panoramic roof to the electronic 4WD system, no component is left out.
4. Zero Wait Time: Immediate digital download—start your repair or maintenance task five minutes from now.

Production Years: 2014, 2015, 2016, 2017 (T32 Series).
